The bellrope is a necessary ancillary to the ship's bell, long considered the 'heart' of a ship. Ship's bells are almost mystical
objects, especially for as superstitious a lot as are sailors. They are polished before all other items and are the last thing to be
removed when a ship is decommissioned or scrapped. US Navy vessels have their names engraved on their bells and when a
ship is struck from the list, the last Commanding Officer usually receives the bell for safekeeping.
The bell-rope is a symbol of the Pride in the ship taken by the crew... battleships and other major vessels will usually have the
fanciest bell-ropes, often the product of several hundred hours of labour by one or more expert knotters. The more detail and
embellishments, the more respect it engenders. This bellrope took me some 70 hours to produce and complete. It is not
particularly fancy, but it is probably the neatest I've ever made. I'd like to thank Marty Combs : he is my source for the #15 codline
used in the bellrope's cover and turksheads creation.
Three large bellropes have been made recently: for the USCGC TAMAROA (WMEC166) (2006), for the USS HARRY S TRUMAN
CVN 75 (2010) and most recently, for the ceremonial dedication of the largest cruise ship in it's line, the which will occur O/A/O
May 20th this year (2016). Each was made on order and specifically for the ship.
| BELLROPES |
Bellrope of #15 cotton codline over a "laid" pudding (core). 20" - 22 " overall from top of eye to finial knot, and 2.75" diameter at the
widest point. (Dimensions are approximate... handmade, d'y' ken?)
Eye is a 3-strand ringbolt braid (or Spanish Graft) over pudding core with a brass thimble insert, to a 5x4 "Square" TKH covering the
thimble to body connexion. Upper two sections are done in a fender-woven "over 2" pattern cover with a 7x6 square TKH at the first
size transition, and a 9x8 square TKH at the second size transition. The 3x5 TKHs are purely decorative. At the second size transition,
the covering changes from the fender-weave to a simple grafting stitch of "1-up, 1-down" which, while a 'simple' graft, still takes about
10 hours to do. Third size transition is covered by an 11x10 square TKH and the end is done in a 13 X 11 turkshead which also "laps"
or binds on the bottom cover, a 3-strand sewn box-braid which is finished off by a stacked 9x6-star knot.
Appx 3 weeks lead time. (Six virgins and a cigar MAY get a day or two faster, but I'm an OLD man!)
widest point. (Dimensions are approximate... handmade, d'y' ken?)
Eye is a 3-strand ringbolt braid (or Spanish Graft) over pudding core with a brass thimble insert, to a 5x4 "Square" TKH covering the
thimble to body connexion. Upper two sections are done in a fender-woven "over 2" pattern cover with a 7x6 square TKH at the first
size transition, and a 9x8 square TKH at the second size transition. The 3x5 TKHs are purely decorative. At the second size transition,
the covering changes from the fender-weave to a simple grafting stitch of "1-up, 1-down" which, while a 'simple' graft, still takes about
10 hours to do. Third size transition is covered by an 11x10 square TKH and the end is done in a 13 X 11 turkshead which also "laps"
or binds on the bottom cover, a 3-strand sewn box-braid which is finished off by a stacked 9x6-star knot.
Appx 3 weeks lead time. (Six virgins and a cigar MAY get a day or two faster, but I'm an OLD man!)
Ringbolt-hitched
eye lanyard and connexion
to body cover of 'over-2'
fender hitching to 7x6
'square turkshead
eye lanyard and connexion
to body cover of 'over-2'
fender hitching to 7x6
'square turkshead

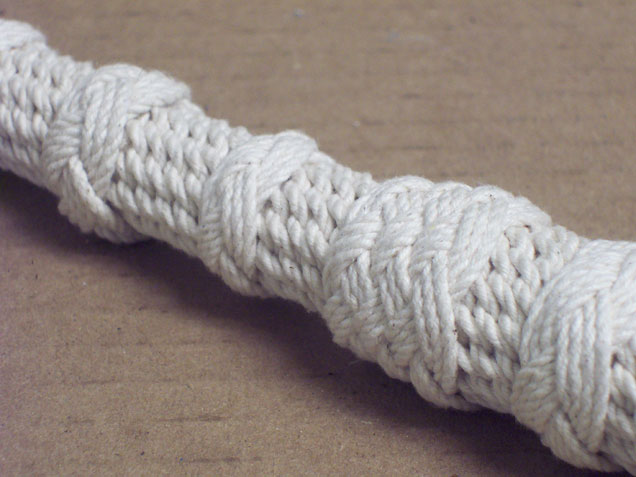

'over-2' fender
hitching to 7x6 'square
turkshead covering size
transition to 3x5 3-pass
decorative turkshead
hitching to 7x6 'square
turkshead covering size
transition to 3x5 3-pass
decorative turkshead
3x8 'square'
turkshead

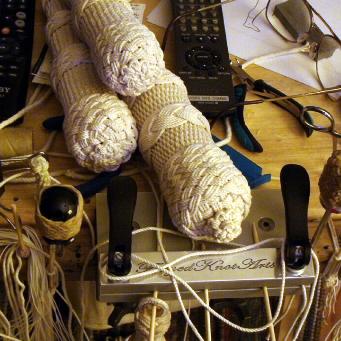

to a 12x11
'square' turkshead
lapping the 3-strand
boxweave end with

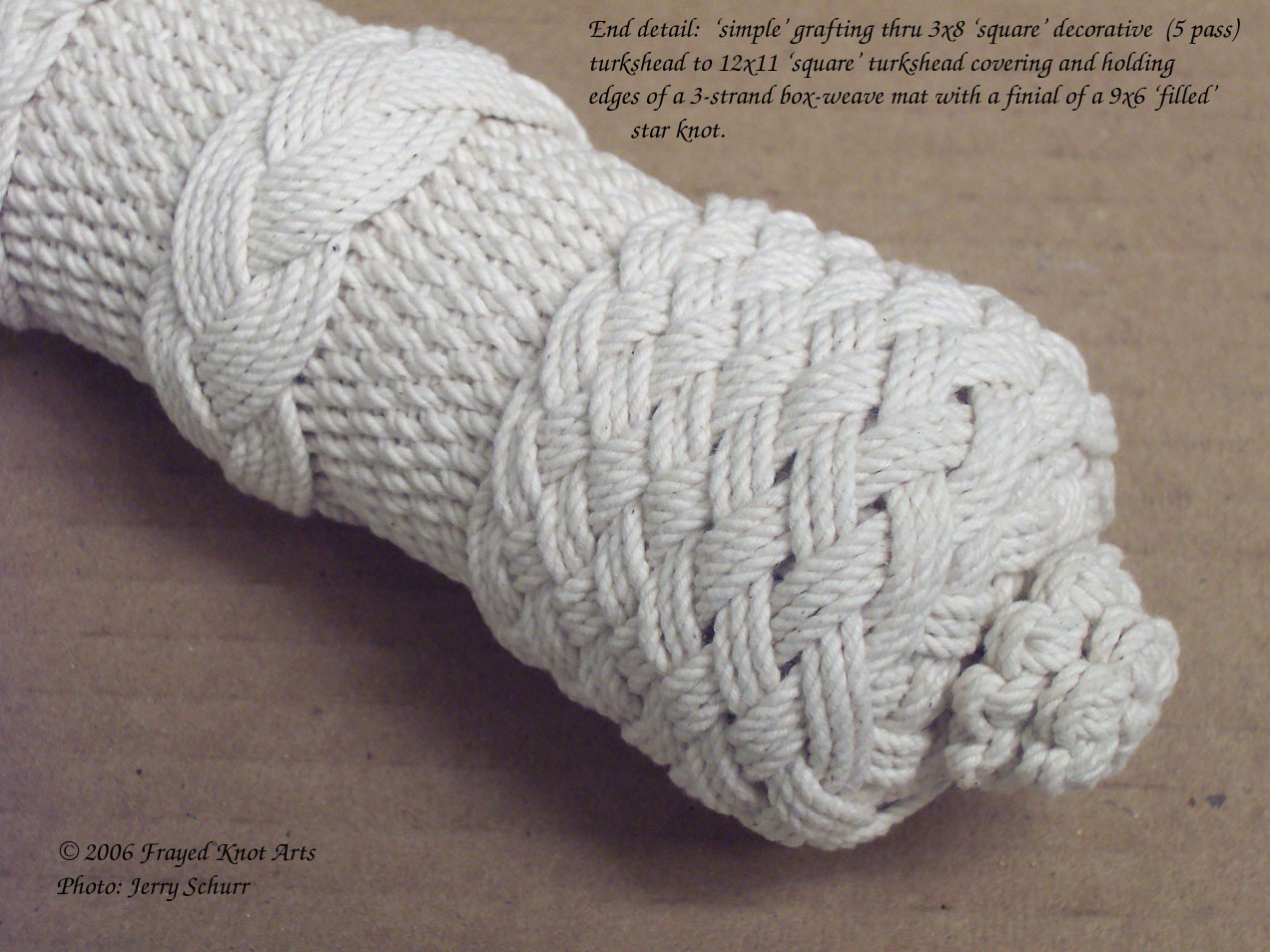

a 9x6 finial 'filled' star knot.
